Technical Specifications:
|
| Product Name |

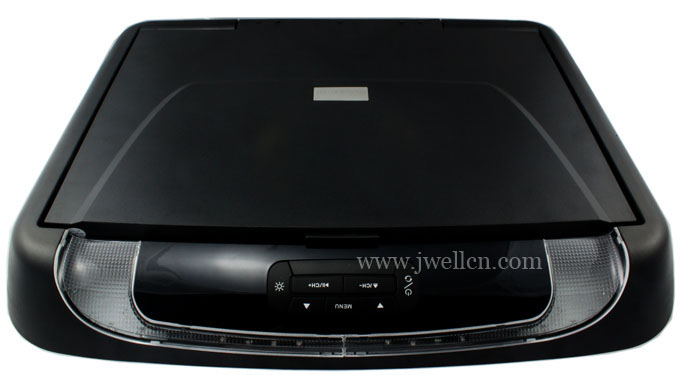

17 Inch Roof Mount DVD player with TV, USB,SD,FM,IR function |
| Model No. |
RF-1722 |
| Screen Size |
17 inch (16:9 TFT-LED) |
| Swiveling Screen |
180° |
| Screen Brand |
|
| Screen Resolution |
1440 X 3(RGB) X 900 pixes |
| DVD Specifications: |
|
| Compatible with |
DVD/SVCD/DVCD/DVD-R/DVD-RW/VCD/CD/CD-R/CD-RW/MP3/WMA/JPG/MPEG1/2/4,DivX |
| Solution/MainBoard |
|
| DVD loader |
Foryou ( made in Taiwan ) |
| DVD Lens |
|
| Contrast |
350:1 |
| Brightness |
350cd/㎡ |
| Analog TV System |
PAL/NTSC/SECAM System |
| Analog TV Receiving freq. |
162MHz - 862MHz |
| Temperature |
Operation temperature -0℃ to 40℃ |
| Shock Resistance |
YES |
| Built-in DOLBY |
YES |
| FM freq. |
87.7-88.9MHz; 106.7-107.9MHz |
| Built-IR |
YES |
| Memary cards |
MMC,SD,MS |

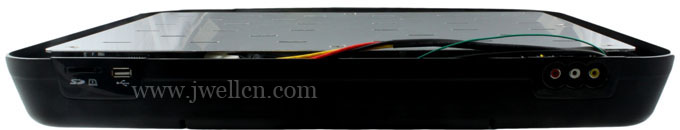

| USB Support |
USB 2.0 |
| Audio S/N Ratio |
≥50 dB |
| Isolation |
≥55 dB |

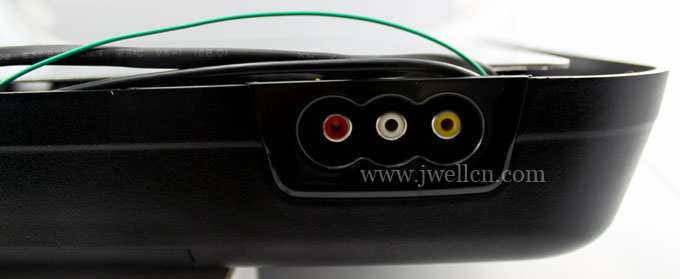

| A/V input |
YES |
| A/V output |
YES |
| Power supply |
AC100-240V, DC24V 3A Output |
| Power consumption |
≤22.8W |
| Product Dimension |
mm X mm X mm |
| Product N.W |
KG |
| Packing Details: |
Gift box size: mm |
| |
Gift box G.W: KG/PC |
| |
Carton Size:X X5mm |
| |
4PCS/CTN; G.W:KG/CTN |
| Accessories: |
|
| |
1. User Manual ( english ) |
| |
2. AV/power cable |
| |
3. Remote control |
| |
4. Install kits |
| |
5. AAA battery |
| |
|
